ZD-GR010Q8DJ Drone Detection and Jamming Gun
A comprehensive airspace security solution integrating advanced detection and jamming technologies to counter unauthorized drone operations and protect sensitive areas.
Key Features
All-in-One Detection and Jamming
Combines drone jamming and detection capabilities to identify drone ID, position, and operator location while disrupting control, video, and navigation signals.
Precise Drone Positioning
Provides real-time positioning data including latitude, longitude, direction, and distance for accurate drone tracking.
Operator Location Tracking
Pinpoints drone operator position with real-time coordinates, orientation, and distance relative to the device.
Direction-Finding Capability
Features radar chart display of drone azimuth information for quick and accurate sky positioning.
Intrusion Alarm System
Immediate audible and visual alerts when drone intrusion is detected for prompt response.
Drone ID Recognition
Displays comprehensive detection data including drone model, frequency with real-time hopping display, and signal strength.
Jamming Status Display

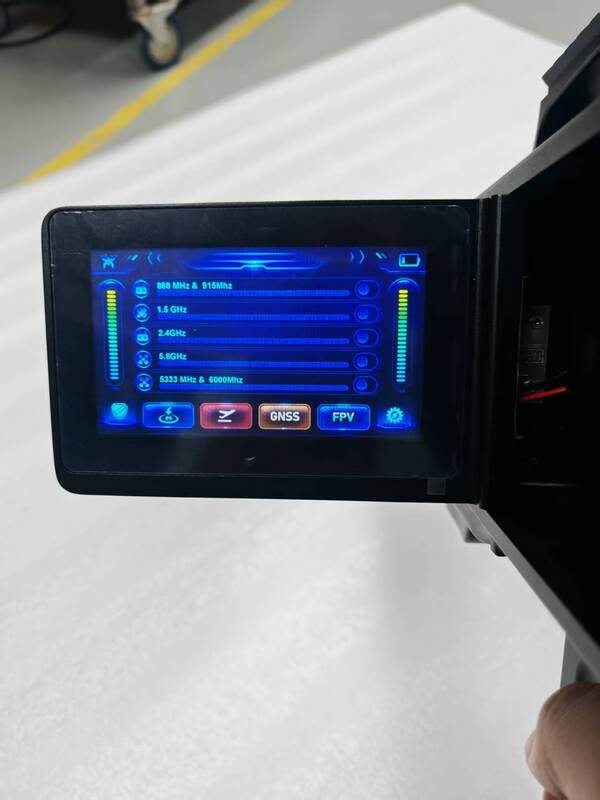

Real-time monitoring of active jamming status and frequency bands on the main interface.
Data Return Function
Wireless transmission of detection data to monitoring centers for centralized analysis and coordination.
Network Positioning & Multi-Device Networking
Supports wireless network access and multi-device networking for unified control over large areas.
One-Click Language Switching
Easy display language switching for international operation and diverse operator backgrounds.
Mobile and Portable Design
Lightweight handheld gun-body design for easy transportation and rapid response.
Easy-to-Replace Battery
Detachable battery design for fast replacement and extended operational duration.
Backpack Design Option
Hook and strap compatibility for backpack carrying in outdoor and mobile security scenarios.
Dual Power Charging Mode
Direct power cord connection or separate battery charging for operational flexibility.
Battery Level Display
Clear battery status monitoring on screen for operational planning and power management.
Technical Specifications
Detection Parameters
| Detection Frequencies |
300MHz - 6GHz |
| Detection Methods |
Spectrum analysis + signal decoding |
| Detection Range |
1.5 - 3km (environment dependent) |
| Alarm Methods |
Visual, audible, distance display, and color change alerts |
Jamming Parameters
| Jamming Bands |
420-470MHz, 825-940MHz, 1170-1280MHz, 1450-1550MHz, 1550-1650MHz, 2400-2500MHz, 5100-5300MHz, 5700-5890MHz (customizable) |
| Jamming Power |
Approximately 250W |
| Jamming Range |
1500m |
| Jamming Modes |
Return to take-off position or forced landing |
Physical & Operational Parameters
| Power Supply |
Built-in batteries |
| Antenna |
Built-in antenna |
| Working Procedure |
Automatic self-diagnosis, alarm triggering, operator-controlled jamming |
| Device Size |
69.5cm × 26cm × 7cm |
| Device Weight |
Approximately 4.5kg (excluding battery) |
| Operation |
One or two-handed operation |
Application Summary
The ZD-GR010Q8DJ provides comprehensive airspace security for critical facilities, public events, and sensitive installations through advanced drone detection, tracking, and neutralization capabilities in a portable, user-friendly platform.
